Producing Artwork for the Lasercutter

This is a guide to producing artwork (the type of artwork we are doing) for the Lasercutter. It's not a definitive guide, it's what I found that works and is simple for people to understand and use. I realise that as I write this it may be too simple for some applications. If that's you, please move on.

IMPORTANT: If you find an error, please let me know!!

How it works

You are setting up a file where you want the Lasercutter to carve or cut out shapes.

You are using the Lasercutter because it's:

• Repeatable
• Quick
• Accurate
• Cuts finer than you can with a Knife.

The Illustration.

Draw the picture. Use any tool you like - Photoshop, Illustrator, black ink on white paper.

In your drawing the white areas are areas that will cut out, the black areas will stay.

When you are drawing, remember that areas of black surrounded by white will fall out, so if they are to stay you will need to provide some support.

Open in Photoshop

Open your image in Photoshop. If it's ink on paper you will need to scan it. If it's Illustrator you can open it directly.

Make sure that it's the size you want and the resolution is at least 300ppi. 1200 will be too much.

In Photoshop, max the contrast so it's just black and white.

Notice I've checked the "Use Legacy" box. This means it will be just black and white.

Convert to greyscale. This last step may not be necessary - you are aiming for pure black and white and it may help.

In photoshop examine the image carefully. Iron out any bumps and clean up any stray pixels.

Photoshop is the easiest place to do this.

Save your file as PSD.

Open Illustrator

Create a new file the correct finished size.

Place the Photoshop file

Select Window > Image Trace

The Image trace window appears.

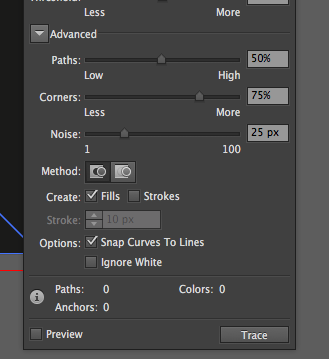

Click on "Advanced"

Click "Ignore white"

Make sure Preview is selected

View the image on the screen while you adjust the sliders. You are aiming for the smallest number of corners and paths that will still give you the image you require.

When you are happy, close the trace image window.

Select the traced image (if it's not already selected).

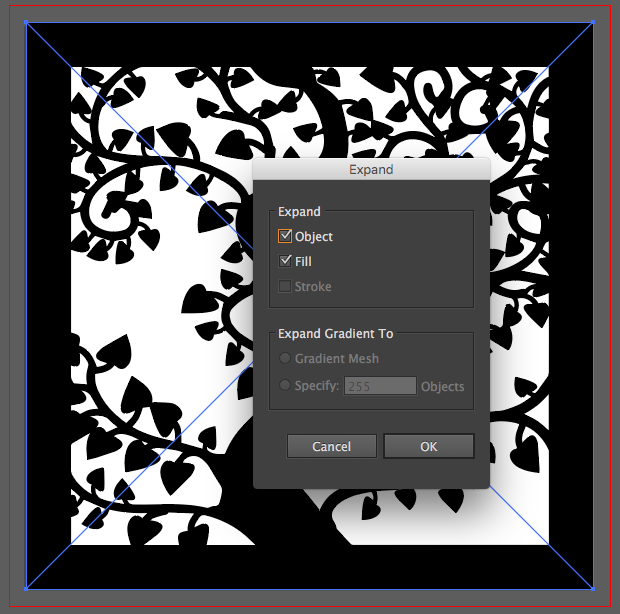

Select Expand.

Check the image by going to View > Outlines.

You should have clear paths. That is where the cutter will cut.

Choose export to DXF. Use the older settings (Our Lasercutter software doesn't understand the newer DXF settings from Illustrator.)




















That's it!
